Modifier - Max

 This use case shows how to apply a modifier on an object.
Modifier

Modifier

  How to bend a teapot and twist a plane.
process
<Process id="modifier" type="3d">
    <Param name="reset">1</Param>
    <Object create="object" name="teapot">
        <Param name="class">teapot</Param>
        <Param name="radius">10</Param>
        <Param name="bend">modifier</Param>
        <Param name="bend.bendAngle">30</Param>
    </Object>
    <Object create="object" name="plane">
        <Param name="class">plane</Param>
        <Param name="width">30</Param>
        <Param name="widthsegs">20</Param>
        <Param name="length">60</Param>
        <Param name="lengthsegs">20</Param>
        <Param name="pos.x">-40</Param>
        <Param name="twist">modifier</Param>
        <Param name="twist.axis">1</Param>
        <Param name="twist.angle">30</Param>
    </Object>
</Process>

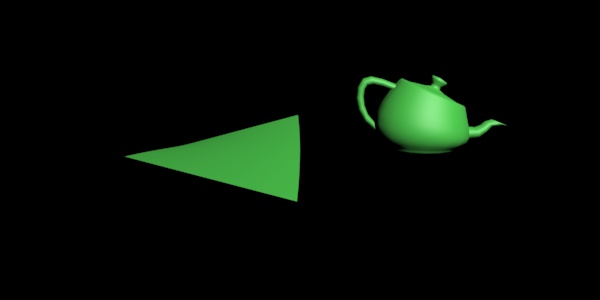

result
 Specifications: Process
