Deformer - Maya

 These use cases show how to apply a deformer on an object.
Squash  Twist

Squash

  How to squash a sphere.
process
<Process id="deformerSquash" type="3d" delegate="maya">
    <Param name="reset">1</Param>
    <Object create="object" name="sphere">
        <Param name="class">sphere</Param>
        <Param name="radius">2</Param>
        <Param name="squash">deformer</Param>
        <Param name="squash.factor">1</Param>
    </Object>
</Process>

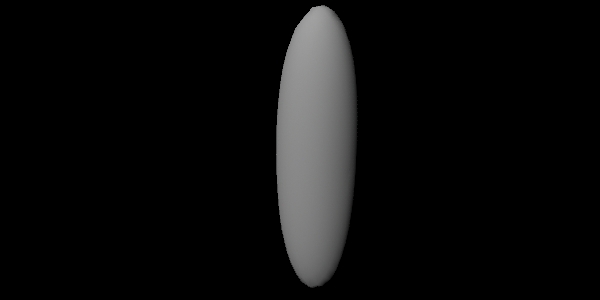

result

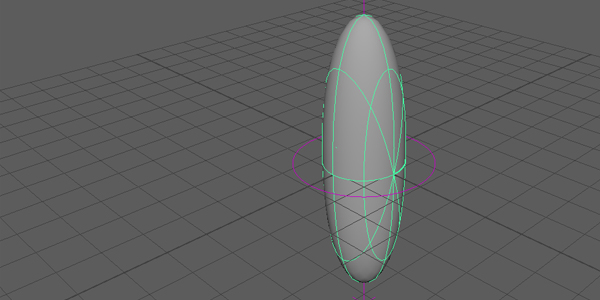

viewport
 Specifications: Process

Twist

  How to twist a plane.
process
<Process id="deformerTwist" type="3d" delegate="maya">
    <Param name="reset">1</Param>
    <Object create="object" name="plane">
        <Param name="class">polyPlane</Param>
        <Param name="width">2</Param>
        <Param name="height">4</Param>
        <Param name="subdivisionsX">10</Param>
        <Param name="subdivisionsY">10</Param>
        <Param name="twist">deformer</Param>
        <Param name="twist.startAngle">90</Param>
        <Param name="twist-handle.rotateX">60</Param>
    </Object>
 </Process>

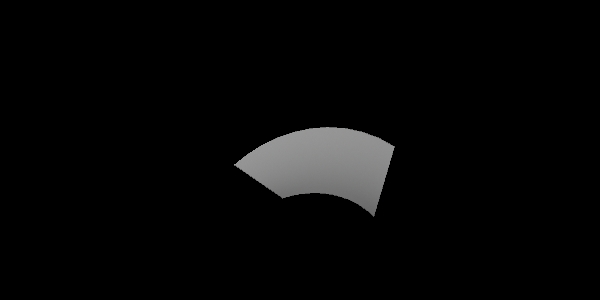

result

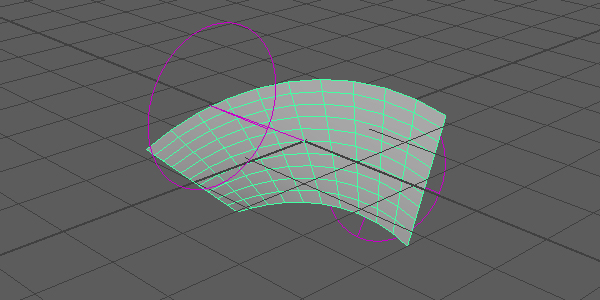

viewport
 Specifications: Process
